Making Measurements

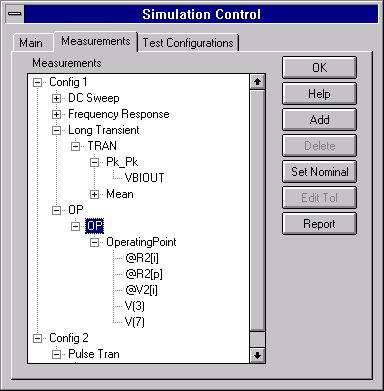

Example Measurements Definition dialog. You can assign different measurements to each pairing of circuit configuration and analysis set. Here we see peak to peak and mean measurements have been assigned to Config1 during a transient analysis. Also 5 different test points will be recorded during the operating point analysis.

Any number of circuit vectors can be recorded during each type of measurement.

measwiz1.gif measwiz3.gif

Example Measurement Wizard dialog. Its easy to specify the measurements you want to make for each test. Just point and click to record the data you want. All of the commonly required measurements are available, including cursor and event-based measurements. Advanced users can take advantage of IsSpice4s powerful ICL scripting capabilities to make specialized measurements.
